Nitrogen Cylinders

Nitrogen Cylinders


Nitrogen cylinders are often used in punching and bending tools when high initial force, durability and reliability are required. Tested up to 5 million strokes, STEINEL nitrogen cylinders have proven themselves to be extremely durable and reliable.

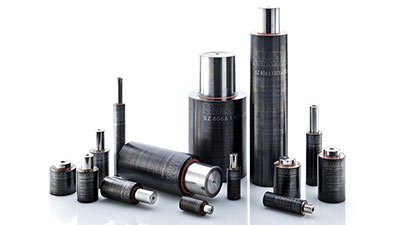

With diameters ranging from 19 to 120 mm, installation heights from 25 to 330 mm and spring forces of up to 10,000 daN, STEINEL offers an incredibly broad standard range of nitrogen cylinders.

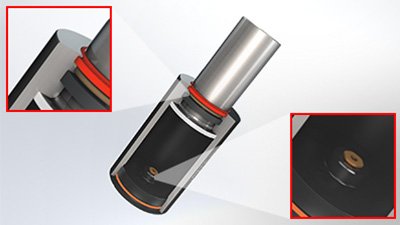

Durable and reliable thanks to clever design

STEINEL nitrogen cylinders owe their durability to high-quality materials and patented design features.

  • Innovative sealing materials
    Minimise dirt particle penetration and nitrogen leakage
  • Lifetime lubrication
    Prevents dry running
  • Two-point piston support
    Reduces leverage in the event of lateral forces and improves piston centring

The FEM-calculated and TÜV-approved casing design with internal piston stop not only ensures less wear but also meets the highest safety standards according to PED regulations.

All nitrogen cylinders with diameters starting at 32 mm can be optionally equipped with burst protection, which provides additional security in the event of an extreme pressure increase.

csm_u1-g1-gasdruckfedern_a785b68ed9csm_u1-g2-gasdruckfedern_2976bcf1b3Fast availability and easy maintenance

Our well-stocked warehouse and modern, well-equipped and highly flexible production facilities in Germany mean that standard products are usually in stock and immediately available. Even if you require customer-specific adjustments or custom product designs, our speed cannot be beaten because our development, design and production facilities are all under one roof.

Even if maintenance is due, STEINEL nitrogen cylinders are quickly ready for use again. Using our repair kit, seals can always be replaced easily and safely on site by a qualified person trained by STEINEL

Download Catalogue Here download IMG
