Die Sets

Die Sets- the perfect basis for your tool

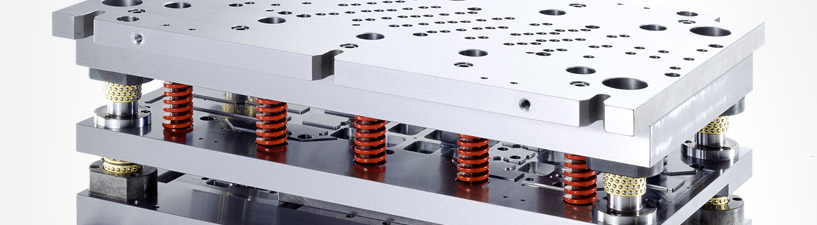

k-saeulengestelle_NEU

Die sets from STEINEL form the optimum basis for your punching and bending tool. They are available in either standardised sizes (from stock) or as special, customer-specific designs: whichever is the case, milling and drilling templates are used in accordance with your specifications.

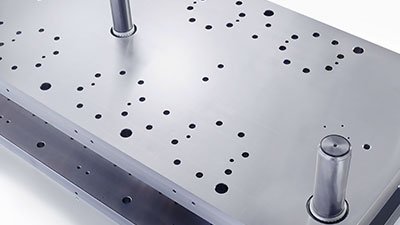

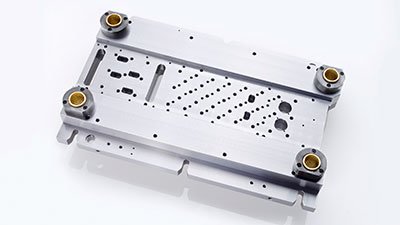

csm_g5-saeulengestelle_743ccdaa59csm_g1-saeulengestelle_1b42bcec96Wide variety, high quality

STEINEL manufactures die sets out of steel, aluminium and special grey cast iron: these are available from stock in a number of standard sizes.

  • Individual steel and aluminium die sets
    Our steel and aluminium die sets can also be custom-produced at short notice within the maximum working range according to your specifications. They are tension-free annealed and, depending on their size, plane-parallel ground (up to 2,000 x 1,000 x 900 mm) or precision-milled (up to 2,500 x 1,250 mm). Our machining service comprises turning, milling, drilling, jig grinding and electrical discharge machining (EDM). Consequently, we can produce die sets matching your tool concept within a very short space of time.
  • Stamping blocks
    The stamping block is a simple type of die set. We offer stamping blocks for the production of simple punched parts in a single tool. Various standard sizes and special designs, e.g. with transversal guide bars, threads for clamping sockets, etc., are both available.
  • Special grey cast iron die sets
    We also offer precision sliding guides with solid lubricant for our special grey cast iron die sets. In order to ensure a high quality standard, all of our grey cast iron die sets are ultrasonic-tested and therefore free from cracks, cavities and inclusions

Tailored to your tool

Milling, drilling, turning, plate shape, plate size – we work to your specifications. You can choose between die sets with or without guide plates and select the type of guidance that is right for you, because we want to make the road to making your perfect tool as obstacle-free as possible.

Download Catalogue Here download IMG
